Understanding PN Junction Detector and Non-Linear Junction Detector (NLJD)
A PN Junction Detector and a Non-Linear Junction Detector (NLJD) are closely related, as NLJD is an application of PN junction detection technology. The fundamental principle behind NLJD is based on the non-linear characteristics of semiconductor PN junctions, making it a specialized tool for detecting hidden electronic devices, even if they are powered off.
1. What is a PN Junction Detector?

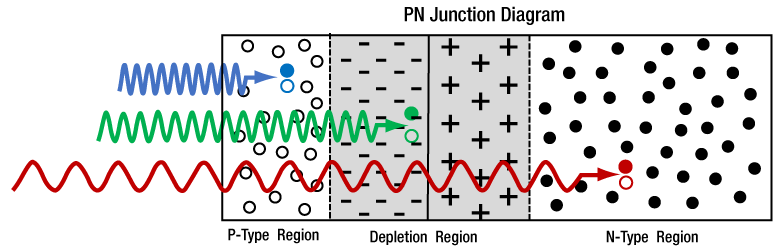

A PN Junction is a core component of semiconductor devices like diodes, transistors, and integrated circuits. When exposed to high-frequency electromagnetic waves, a PN junction exhibits non-linear behavior, producing harmonic signals (second and third harmonics).
Key Functions of a P-Junction Detector
1). Detection of Hidden Electronic Devices:
-
- The primary function is to locate covert electronic devices, such as:
- Listening devices (bugs).
- Tracking devices (GPS trackers).
- Cameras or recording equipment.
- These devices often contain P-N junctions, which the detector can identify even if the device is powered off.
- The primary function is to locate covert electronic devices, such as:
2). Identification of Semiconductor Components:
-
-
- The detector can identify the presence of semiconductors (e.g., diodes, transistors, ICs) in objects or structures, which may indicate the presence of hidden electronics.
-
3). Non-Invasive Inspection:
The device allows for non-invasive inspection of objects, rooms, or vehicles without the need for physical disassembly. This is particularly useful in TSCM sweeps or security inspections.
4). Differentiation Between Electronic and Non-Electronic Objects:
- The detector can distinguish between objects that contain electronic components (e.g., smartphones, laptops) and those that do not (e.g., furniture, walls).
5). Counter-Surveillance:
-
- Used by security professionals to ensure that sensitive areas (e.g., boardrooms, government facilities) are free from unauthorized surveillance devices.
6). Forensic Investigations:
-
- In forensic or law enforcement scenarios, the detector can be used to locate hidden electronics in evidence or suspect belongings.
Key Characteristics of a PN Junction Detector
- Detects semiconductor materials: It can identify electronic components while ignoring metals or other non-electronic objects.
- Relies on non-linear response: When exposed to an RF signal, the PN junction generates harmonic frequencies that can be analyzed.
- Works even if the device is powered off: Since semiconductor junctions always exist in electronics, they can be detected regardless of whether the device is turned on.
(Learn more about PN Junction Technology)

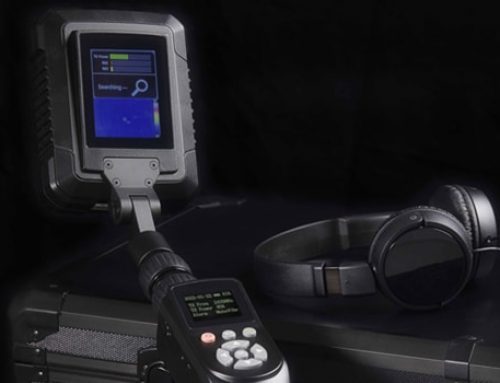

2. What is a Non-Linear Junction Detector (NLJD)?
A NLJD is a professional counter-surveillance device based on PN junction detection technology. It is used to detect hidden electronic devices (e.g., hidden cameras, listening devices, GPS trackers, or mobile phones) by transmitting a high-frequency RF signal (usually between 800 MHz and 3 GHz) and analyzing the harmonic responses it receives.
(Note: After two metals of the same or dissimilar type are in contact, a metal node is formed when there is an appropriate pressure, distance, or a layer of oxide is formed in the middle. The volt-ampere characteristics of the metal node and the PN junction are different.)
How NLJD Works？
① Emits a high-frequency signal toward the target area.
② Detects second and third harmonic responses:
Strong second and third harmonics → Likely a modern electronic device.
Strong second harmonic, weak third harmonic → Possibly an old or oxidized semiconductor.
No harmonics or random harmonics → Likely a metal object or a non-electronic material.
③ Analyzes signal strength and type to determine the presence of hidden electronics.
3. Relationship Between PN Junction Detector and NLJD
| Comparison | PN Junction Detector | Non-Linear Junction Detector (NLJD) |
| Definition | A detection method based on semiconductor PN junction non-linearity | A professional device that applies PN junction detection for security and counter-surveillance |
| Purpose | Identifies semiconductor materials | Detects hidden electronic devices such as bugs, cameras, and trackers |
| Technology | Detects harmonic responses from PN junctions | Transmits RF signals and analyzes the returned second and third harmonics |
| Power Dependency | Works on powered-off and powered-on devices | Can detect electronics even when switched off |
| Applications | Semiconductor testing, material identification | Counter-surveillance, security sweeps, anti-espionage |
4. Summary
A PN Junction Detector is the fundamental principle behind an NLJD, while NLJD is a practical implementation of this technology for counter-surveillance applications. NLJDs use PN junction detection to locate hidden electronic devices, making them essential tools for security professionals in detecting surveillance threats in government, military, and corporate environments. In short:
- PN Junction Detection = Theoretical Principle
- NLJD = Practical Counter-Surveillance Tool Based on PN Junction Technology
5. Applications of PN Junction Detectors
- TSCM Sweeps: Ensuring secure environments are free from eavesdropping devices.
- Corporate Security: Protecting confidential meetings and sensitive information.
- Government and Military: Safeguarding classified areas and operations.
- Law Enforcement: Detecting hidden electronics during investigations.
- Personal Privacy: Checking for tracking devices in personal belongings
6. Frequently Asked Questions (FAQs)Concerning PN Junction Detector
- Can a PN junction detector find devices that are turned off?
Yes, it can detect electronic components even if the device is powered off, as long as the components contain P-N junctions.
- Can PN junction detector detect all types of electronic devices?
It can detect devices that contain semiconductors (e.g., diodes, transistors, ICs). However, it may not detect devices that lack P-N junctions or use advanced shielding.
- What materials can a PN junction detector scan through?
It can penetrate most non-metallic materials (e.g., wood, plastic, drywall). However, metal or thick concrete may block or weaken the signal.
- How accurate is a PN junction detector?
It is highly accurate in detecting P-N junctions but may produce false positives from legitimate electronics (e.g., smartphones, laptops). Proper training is required to interpret results correctly.
- What is the detection range of a PN junction detector?
The range varies by model but typically ranges from a few centimeters to several meters, depending on the device’s power and the environment.
- Can a PN junction detector differentiate between harmful and harmless devices?
No, it cannot distinguish between malicious devices (e.g., bugs) and legitimate electronics (e.g., smartphones). The operator must analyze the context of the detection.
- Does it work in noisy electromagnetic environments?
Performance may be affected by electromagnetic interference (EMI). High-quality detectors are designed to minimize false signals in such environments.
- Can it detect devices shielded with metal?
Metal shielding can block or reduce the PN Junction detector’s effectiveness. Advanced devices may use techniques to partially overcome this limitation.

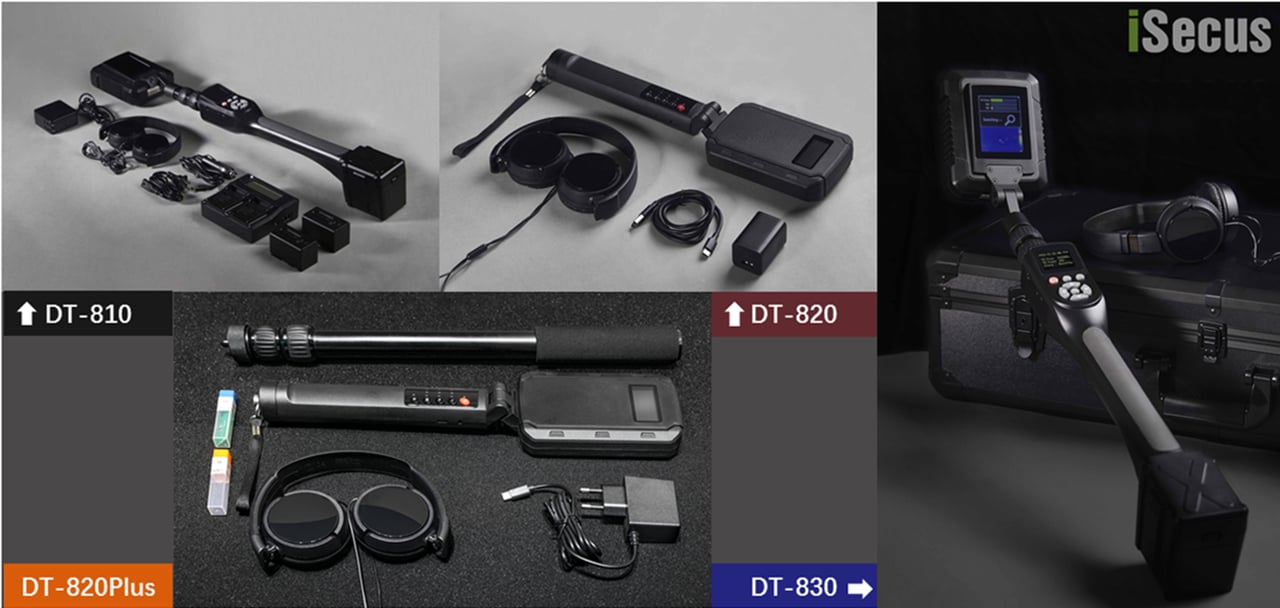

7. What PN Junction Detectors does iSecus Offer?
