DT-650
Drone Jammer Gun/Anti-Drone System with detection and striking
General Configuration
√ Interference Countermeasures Mechanism: SDR
√ Detection Signal Types: Data transmission, Remote Control, WiFi
√ Detection Range: 360° Omnidirectional
√ Detection Distance: ≥2km (open), 0.5km-1km(suburban)
√ Detection Response Time: <10S
√ Interference Distance: ≥1.5km
√ Interference Response Time: <5S
If you need Jammer Gun on Drones for Military Projects, DT-650 Drone Jammer Gun is highly recommended.
Description:
iSecus would like to introduce an advanced solution to your drone-related security concerns – DT-650 is a Powerful Portable Drone Jammer Gun to detect and strike drones! This cutting-edge device is based on SDR technology(Software Defined Radio) and is designed to provide you with the ultimate protection against unwanted drones.
DT-650 Drone Jammer Gun is able to detect drone data transmission signals, drone remote control signals, and WIFI signals, providing you with complete protection against almost all types of drones. With its big LCD screen and user-friendly interface, this gun type Drone Jammer is easy to use and operate. With its strong detection and strike functions, DT-650 Drone Jammer Gun can detect drones in real-time, with omnidirectional detection capabilities and directional detection distance of over 2km in an open environment. It can also interfere with drones at a distance of over 1.5km.
Moreover, DT-650 has a battery standby time of no less than 12 hours and a continuous working time of no less than 60 minutes using one single battery. This ensures that you have the protection needed for an extended period of time. Its IP54 rating makes it resistant to dust and water splashes, making it the perfect choice for use in any environment.
Less than 4.5kgs, this portable drone jammer gun DT-650 can be widely used in many applications such as Military Operations, Prison Security, VIP Protection, Aircraft Safety, Personal Privacy.
Features:
◆ Wide Detection Frequency Range: 360 degree Omnidirectional Antenna Detection
◆ Fast Responding Time: Detection Speed<10 Second, Interference Speed< 5 Second
◆ Low False Alarm Rate: DT-650 Drone Jammer Gun FAR is less than 5%
◆ Powerful Detection Capability: Dedetection Distance>2KM, Interference Distance >1.5KM
◆ IP54 Protection Level for outdoor using
◆ Big LED screen with user friendly interface
DT-650 Drone Jammer Highlights
Visual Alarm
Pop-up Alert and 3-grades Sound Alarm: Target at the drone, the more accurate the direction, the more urgent the warning sound.

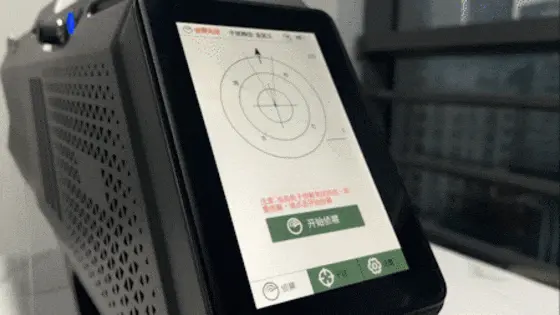

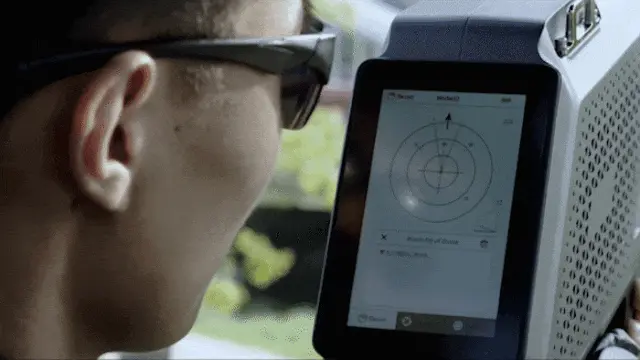

Aiming Assistance
The direction and angle of the target drone are visually represented through detailed graphical displays.
SDR Effective Jamming
Can jam those popular drones, block signals of transmission, remote control, GPS, etc.
Data Tracking
Monitor target drone information in real-time and track historical records directly on the jammer.
Specifications:
| Model | DT-650 |
| Description | SDR Drone Jammer Gun |
| Detection Method | Radio spectrum sensing detection |
| Detection Signal Types | Drone data transmission signal, drone remote control signal, WIFI signal |
| Detection Frequency | 840 MHz ~930MHz,1430 MHz~1444 MHz,1550 MHz~1620 MHz,2400 MHz~2500MHz,5725 MHz~5875MHz |
| Detection Antenna Type | Omnidirectional antenna |
| Detection Distance | ≥2km(open environment), 0.5km-1km(suburban environment) |
| Detection Response Time | <10s |
| False alarm Rate | ≤5% |
| Underreporting Rate | ≤5% |
| Alarm Mode | LED display, audible alarm |
| Direction Measurement Accuracy | ≤20° |
| Interference Countermeasures Mechanism | SDR(Software Defined Radio) |
| Interference Frequency | 840 MHz ~930MHz,1430 MHz~1444 MHz,1550 MHz~1620 MHz,2400 MHz~2500MHz,5725 MHz~5875MHz,2515MHz ~2675 MHz,3400MHz ~3600 MHz |
| Interference Capability | ＞1.5km，dry to pass ratio not less than 10:1 |
| Transmission Power Adjustment | Supports adjustable transmission power according to interference distance requirements |
| Interference Antenna Type | Directional antenna |
| Interference Antenna Transmission angle | ≥30° |
| Interference Response Time | <5s |
| Continuous Working Time | Not less than 60 minutes (full frequency transmission on) |
| Standby Duty Time | Not less than 12 hours (single battery) |
| Information Display Mode | LED display screen |
| Information Display Content | Self check status, drone model, drone frequency band, drone signal amplitude, date time,battery level, interference duration, etc |
| Size | ≤500mm×300mm×100mm |
| Weight | ≤4.5kg |
| Working Temperature | -30℃~45℃ |
| Power Supply Requirements | Lithium battery with 2 pieces |
| Protection Level | IP54 |
How does DT-650 Drone Jammer Gun Work?
Drone Jammer Gun Application Scenarios
Drone Jammer for Prison Security
Drone Jammer for Prison Security
Drone Jammer for Personal Privacy
Drone Jammer for Personal Privacy
Drone Jammer for Military Operations
Drone Jammer Application Scenarios for Military Operations
Drone Jammer for Event Security
Drone Jammer for Event Security
Drone Jammer for Aircraft Safety
Drone Jammer for Aircraft Safety
Anti Drone System for VIP Protection
Anti Drone System for VIP Protection
