LIVE20R/SLK20R
USB Fingerprint Scanner/Fingerprint Sensor/Fingerprint Reader
General Configuration:
√ Image Quality: 2 million pixels CMOS
√ Live Fingerprint Detection: Yes
√ Image Format: RAW, BMP, JPG
√ Dry, Wet, or Rough Fingerprint: Works well
√ Communication: USB 2.0 / USB1.1
√ Image Size: 300 * 400 pixel (FAP20 )
√ Windows 2000/XP/2003/Vista/7(32/64bit), WIN8
If you are looking for fingerprint scanner for registering fingerprint template on PC, SLK20R(Live20R) is highly recommended. It is elegant and compact, suitable for most WIN OS.
Description:
Live20R/SLK20R a leading fingerprint scanner designed by ZK USA laboratory which adopts the advanced optical design. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. Live2R can be the most comfortable and affordable desktop Fingerprint enrollment and identification device.
How to set up the LIVE20R? Check this video.
Specifications:
| Model Name | SLK20R (Live20R) |
| Material | Optical |
| CPU | 280MHz DSP |
| Flash | 32 MB |
| SoC | RTOS[image out only] |
| Image Quality | 2 million pixels CMOS |
| Encrypted Fingerprint Data | YES |
| Sunlight Operation | Yes, Dark field and Automatic Gain / Exposure |
| Water Splash | YES |
| Dry, Wet, or Rough Fingerprints | Work well |
| Power Consumption | 5V:200mA Scanning;5V:60mA idle (waiting for finger) |
| Live Fingerprint Detection | YES |
| LED | White |
| Product Certifications | FCC, CE, RoHS, PIV |
| Power Voltage | 5V (USB) |
| Power Current | 200mA |
| Communication | USB 2.0 / USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500~1000 dpi |
| Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
| Collecting Area | 16.5 * 23 mm |
| Image Size | 300 * 400 pixel (FAP20) |
| Dimension | 49 * 44 * 20.1mm (L*W*H) |
| Image Format | RAW, BMP, JPG |
| Template | ZKFinger V10.0 ; ISO19794-2 ; ANSI-378 |
| Template Size | 1- 4KB (ZKFinger V10.0);1568 B (ISO 19794-2) |
| Gray Level | 256 |
| Weight | 0.12kg |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |

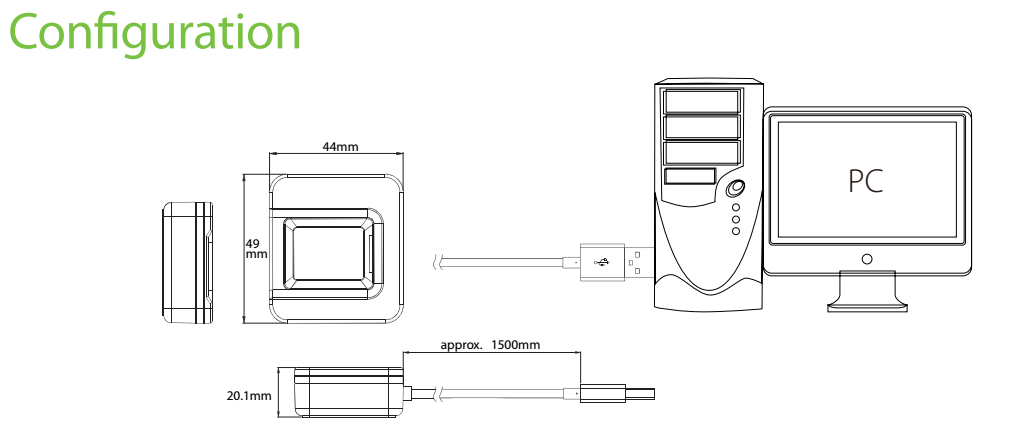

Connection Diagram
Specifications:

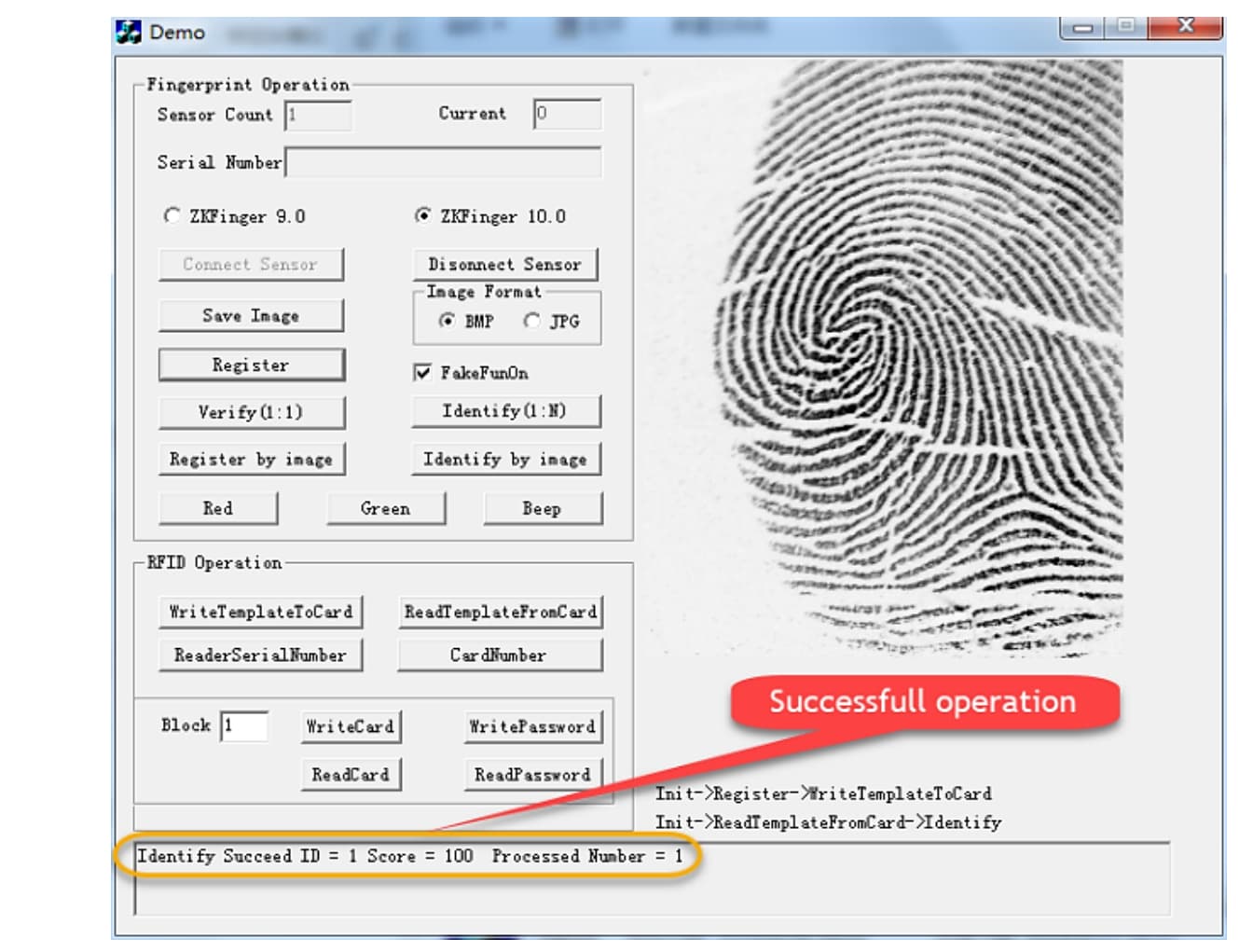

| SDK Name | ZKFingerSDK 5.3 |
| Compatible Devices | SLK20R/ZK9500/ZK4500/ZK7500/ZK8500 |
| Functionality | Initial/Open/Close device |
| Set/Get parameter, parameter:SN. ,DPI, image size. | |
| Get Image | |
| Generate ZKTeco V10.0 Templates | |
| Initial/Free algorithm | |
| Add/Delete template in hosting memory | |
| Finger template identification in hosting memory | |
| Finger template merging | |
| BMP/JPG image extract to template | |
| Data format transfer[Base64] | |
| Storage image in hosting, need to design | |
| Storage templates in hosting, need to design | |
| Browser Support | NO |
| SDK Demo Language | ActiveX/C/C#/Java |
