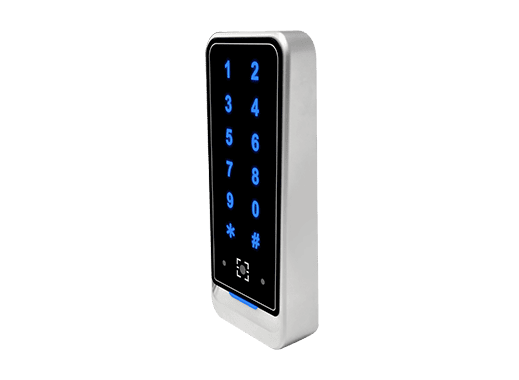

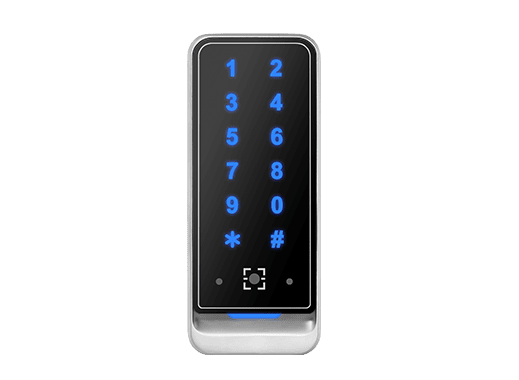

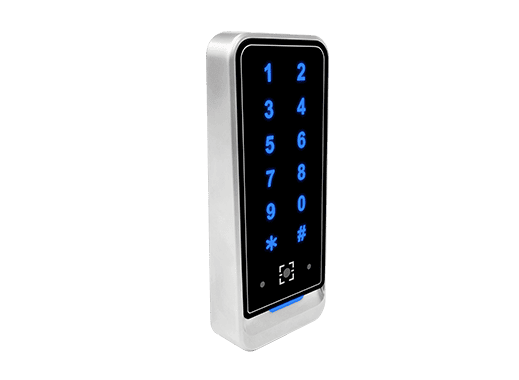

Model: QRT387

QR Code and Card Access Control

Main Features

* Support both Barcode and Dynamic QR code
* Support 13.56Mhz RFID card, NFC and Password
* Reading Distance: QR ≥ 5CM, RFID Card ≥ 5CM
* W26/W34/W66, RS485 Communication
* IP65 Waterproof Case for outdoor use
* Backlight & Flushing Light for night use
* With Wiegand output, can work slave reader for access control system

Ask for price

Description:

QRT388 & QRT377 are standalone access control devices that support dynamic QR code, 13.56MHz RFID and password verification. There are 12 touch keyboards with backlight. By adopting high scanning camera and flashing light, the devices can reach fast scanning speed at high accuracy rate during day and night time.

The devices are equipped with metal frame and toughened glass faceplate. Related cases meet IP65 waterproof standard with anti-exposion feature. QRT378/QRT388 are not only standalone access control, but also can work as slave readers for access control system through Wiegand ports. These devices could be applied to a wide range of applications, like Apartments Management, Visitors Management, Hotel Management, Self-service Supermarkets, Elevator System, etc.

Specifications:

RFID Capacity5000
Password Capacity5000
Access  Control InterfaceElectric Lock, Door Sensor, Alarm, Exit Button
QR Code StandardQR, Data Matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/Code 93
QR Code TypesElectronic QR Code, Printed QR Code, Dynamic QR Code
RFID CardUltralight, MF1(S50,S70), DESFire EV1, NTag, NFC,CPU, ISO/IEC 14443A
Operation Frequency13.56 Mhz
Working Voltage12V (No more than 200mA)
Scannning Angle34°(Horizontal),  26°(Vertical)
Resolution 648×488
Reading DistanceRFID>5cm, QR 5.0-18.0cm (Depends on QR Code size , Light Intensity)
Speed100ms (On average)
CommunicationsWiegand (Default WG34), RS485
Working Temp -20℃~+60℃
Working Humidity 20% ~ 80%
Dimension QRT378:138*58*22.67mm | QRT388:120*80*22.67mm

Download

QR378 QR388 QR code Access Control Datasheet.pdf

QR Reader Demo
