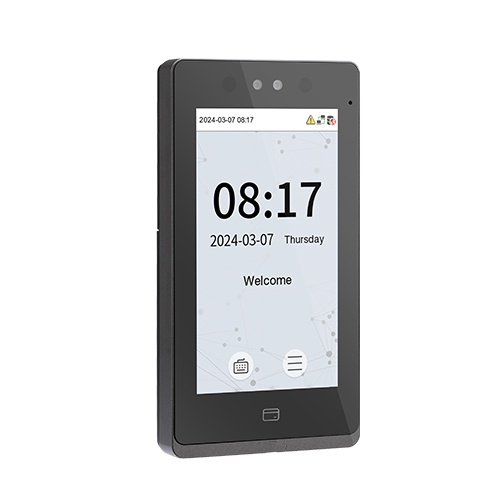

SenseFace 7A & SenseFace 7B
Multi-biometric Identification Access Control and Time Attendance

General Configuration:
7″ TFT Touch LCD
Face capacity: 10000
Fingerprint capacity: 10000 (7A)
ID Card Capacity: 50000 (Standard ID module)
Log Capacity: 300,000
Communication: TCP/IP, Wiegand Input/Output, RS485, USB
Standard Functions: ADMS, webserver, Scheduled bell, Workcode, SMS, T9 input, DLST, Self inquiry, Photo-ID, User role, IP65
Access Control Interface for Third Party Electric Lock, Door Sensor and Exit Button, Alarm
Optional functions: MF Module, WiFi, Wireless Doorbell

This device is suitable for high-end users who are looking for top-configuration access control or time attendance solution.

Description:

SenseFace 7 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology.  It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. SenseFace 7 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 7 Series supports multiple communication protocols, Its firmware has AC push and can convert  to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink  (AC module).ation speed is reached. Because of its large user capacity, uFace802Plus could be used in many applications.

Features:
◆ Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
◆ Attained IP65 Protection Rating With Dustproof and Waterproof
◆ Multiple Authentication Methods: Face/Fingerprint/RFID/Password
◆ Available RFID Modules:125KHz ID Card / 13.56 MHz MF Card
◆ HD Video Door Phone Via SIP Protocol (Version 2.0). It is Compatible With ZKTeco SIP Video Intercom Indoor
Monitor (VT07-B01and VT07-B01-W)
◆ User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
◆ Compatible with wireless doorbell (optional)
◆ Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
Sensor; Exit Button)

Specifications:
ModelSenseFace 7ASenseFace 7B
Authentication methodFingerprint / Face / Card / Password (Virtual Keypad)Face / Card / Password (Virtual Keypad)
Display7"@ TFT Color Touch LED Screen (600*1024)
CameraWDR Binocular Camera @ 1MP
Operation SystemLinux
HardwareCPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8 ohm@1 W
Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB /
Impedance: 2.2kΩ)
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint (Z-ID)/
Fingerprint Template Capacity10,000 (1:N) (Standard)/
Face Template Capacity10,000 (1:N)
Card Capacity50,000 (1:N) (Standard)
User Capacity50,000 (1:N) (Standard)
Transaction Capacity300,000 (1:N)
Max. User Password Length8 Digits
Biometric Authentication Speedless than 0.5 sec (Fingerprint), less than 0.35 sec (Facial Authentication)less than 0.35 sec (Facial Authentication)
Face Authentication Distance30cm to 200cm (Facial Authentication)
False Acceptance Rate (FAR) %FAR ≤ 0.01% (Visible Light Facial Authentication)
FAR ≤ 0.0001% (Fingerprint)
FAR ≤ 0.01% (Visible Light Facial
Authentication)
False Rejection Rate (FRR) %FRR ≤ 0.02% (Visible Light Facial Authentication); FRR ≤ 0.01% (Fingerprint)FRR ≤ 0.02% (Visible Light Facial Authentication)
Biometric AlgorithmZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)ZKFace V4.0
Card TypeID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional)
CommunicationTCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
Standard FunctionsADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels,
Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm,
Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF
(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA
Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Optional FunctionsIC Card, Wi-Fi, Wireless Doorbell
Access Control InterfaceRS485 (RS485 Card Reader / Biometric Reader)
Power SupplyDC 12V 3A (Optional)
Operating Temperature-5°C to 45°C
Operating Humidity10% to 90% RH (Non-condensing)
Dimensions238mm * 115mm * 22.3mm (L*W*H)214mm * 115mm * 22.3mm (L*W*H)
Net Weight0.622 Kg
Supported SoftwareSoftware: ZKBioCVAccess / ZKBioTime; Mobile App.: ZKBio Zlink; Cloud Service: ZKBio Zlink
InstallationWall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Ingress Protection RatingIP65 (waterproof and dustproof )
CertificationsISO14001, ISO9001, CE, FCC, RoHS

Sense Face Connection Diagram
