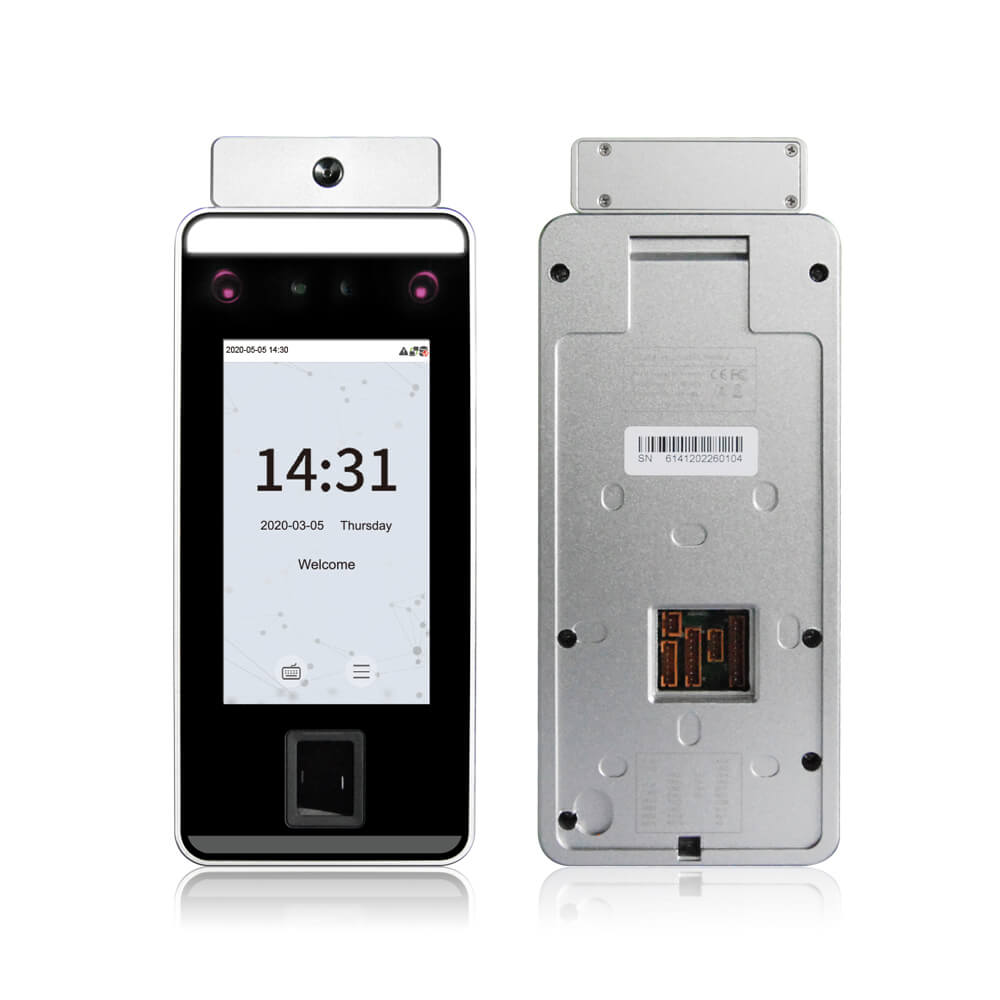

SpeedFace V5L Face and Palm Access Control

Description:

ZK SpeedFace-V5L series is a high-speed biometric access control terminal with face, palm vein and fingerprint recognition with mask detection. V5L Series is a fully upgraded version of the V4L Visible Light Facial Recognition Terminal, using intelligent engineering facial recognition algorithms and the latest computer vision technology. It supports both facial and palm verification with large capacity and speedy recognition, as well as improves security performance in all aspects.

SpeedFace V5L adopts touchless recognition technology and new functions namely masked individual identification which eliminates hygiene concerns effectively. It is also equipped with ultimate anti-spoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 3,000 palm templates ([P]).

This 5 inch face device supports both time attandance and professional access control function. It is built with both TA Push and AC Push function. It is compatible with multiple softwares such as ZKTime, ZKAccess, Biotime, BioAccess and BioCVSecurity.

Update: Latest Speedface V5L supports QR reading function, without increasing charges. its facial camera supports QR code, PDF417, Data Matrix, MicroPDF417, Aztec, and so on, with ZKBioAccess IVS Mobile APP support Dynamic QR code for T&A/A&C.

Features:

· Visible Light Facial Recognition
· Fingerprint and Palm Recognition
· QR code, PDF417, Data Matrix, MicroPDF417, Aztec
· Dynamic QR code with ZKBioAccess IVS Mobile APP
· Video intercom ZKBioTalk / APP: ZSmart
· Onvif Protocol
· Better hygiene with touchless biometric authentication and masked individual identification
· Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
· Available card modules: 12.5 KHz EM card / 13.56MHz IC card (MF)
· Supplement light with adjustable brightness
· Multiple Verification Methods: Fingerprint / Face / Palm / QR Code / Card / Password

Specifications:

Specifications	SpeedFace-V5L	SpeedFace-V5L[P]	SpeedFace-V5L[TD]
Display	5-inch Touch Screen	5-inch Touch Screen	5-inch Touch Screen
Face Capacity	6000	6000	6000
Palm Capacity	/	3000	3000
Fingerprint Capacity	6,000 (Standard); 10,000 (Optional)	6,000 (Standard); 10,000 (Optional)	6,000 (Standard); 10,000 (Optional)
Card Capacity	10000	10000	/
Transactions	200000	200000	200000
Operation System	Linux	Linux	Linux
Standard Functions	ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Acess Levels, Groups, Holidays, Anti- passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes.	ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Acess Levels, Groups, Holidays, Anti- passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes.	Except for ID Card, else functions is the same as the left.
Hardware	900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjust­able Light Brightness LED	900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjust­able Light Brightness LED	900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjust­able Light Brightness LED
Communication	TCP/IP, WiFi (Optional), Wiegand input / output, RS485	TCP/IP, WiFi (Optional), Wiegand input / output, RS485	TCP/IP, WiFi (Optional), Wiegand input / output, RS485
Access Control Interface	3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input	3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input	3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Optional Function	13.56MHz IC Card (MF)	13.56MHz IC Card (MF)	/
Facial Recognition Speed	≤1s	≤1s	≤1s
Biometrics Algorithms	ZKFace V5.8 & ZKFinger V10.0	ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0	ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0
Power Supply	12V 3A	12V 3A	12V 3A
Operating Humidity	10% - 90%	10% - 90%	10% - 90%
Operating Temperature	-10 °C - 45 °C	-10 °C - 45 °C	-10 °C - 45 °C
Dimensions (W*H*D)	91.93*202.93*21.5mm	91.93*202.93*21.5mm	91.93*220*22.5mm
Supported Softwares	ZKBioAccess	ZKBioAccess	ZKBioAccess

SpeedFace V5L’s advanced biometric capabilities, including face, fingerprint, palm, and RFID recognition, along with its features like mask detection, liveness detection, and high user capacity, make it an ideal solution for a wide range of applications. Its ability to integrate with various management software further enhances its utility, providing organizations with the tools they need to manage access control and time attendance efficiently while maintaining high security standards. Whether for small businesses or large enterprises, the SpeedFace V5L offers a scalable, user-friendly, and secure solution for modern access control needs.

Here are some tyical application scenarios:

Q1: What software does the SpeedFace V5L work with?

A1: For LAN management, you can use ZKTime5.0, ZKAccess3.5 which are free softwares. For WAN management, you can use Biotime, BioAccess, BioCVSecurity cloud software for remote management. But these cloud softwares are charged. You need to buy software licences.

Q2: How can I switch the device mode to support different B/S software?

A3: In the device menu, there is sub-menu to switch device type. System—>Device Type Settings:

Time Attendance Terminal: Means TA Push Mode, so you can connect V5L with Biotime

Access Control Terminal: Means AC Push Mode, so you can connect V5L with ZKBioAccess and ZKBio CV Security

Q3: Can I integrate the SpeedFace V5L with other security systems?

A3: Yes, it supports Wiegand In/Out, allowing integration with other security devices like door controllers or turnstiles.
