Model: TR4000

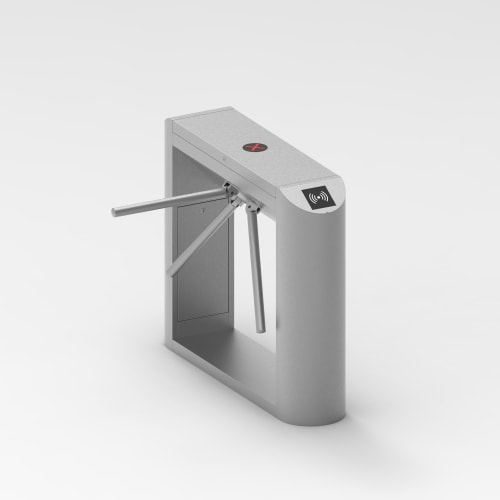

Tripod Turnstile Machine for Access Control
General Configuration:
√ Housing Size: 1200*280*980mm
√ Housing Material: 1.0–1.2mm, 304# stainless steel, corosion resistant
√ Channel Width: 550mm
√ Pass Speed: 25 persons/min.
√ MCBF:1,000,000 cycle
√ Input signal: Dry Contact Pulse
High Quality, Good Price and Fast Shipment.
Description:
TR4000 turnstile machine is a gate with three rotating arms that allows only one person to pass through at a time. It can be integrated with any access control devices to realize multiple methods of authentication, such as palm, face, fingerprint, RFID, QR code, etc. A turnstile machine is a great solution for security, crowd management, and revenue generation. This tripod turnstile machine is made of durable SUS304 materials and can withstand harsh weather and heavy use.
By adopting stable power control board and DC brushless motor, with modules design, it is easy to install, maintain, and operate. The machine works bidirection to control the entrance. Tripod turnstile machine is a costeffective solution for entrance control.
Features:
◆ SUS304 stainless steel cabinet(316 optional)
◆Bi-directional operation with arm drop function
◆Adjustable time out delay
◆Easy and simple installation process, easy to maintain
Specifications:
| Model No. | TR4000 |
| Power requirements | AC110V/220V, 50/60Hz |
| Working temperature | -28 °C - 60 °C |
| Working environment | Indoor/outdoor |
| Lane width(mm) | 550 |
| LED indicator | Y |
| Cabinet material | SUS304 |
| Lid material | SUS304 |
| Barrier material | SUS304 |
| Barrier movement | Rotation |
| Security level | Medium |
Turn Style Gate Measurement:
