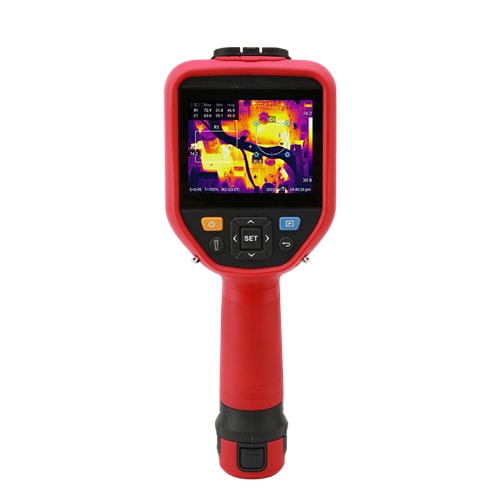

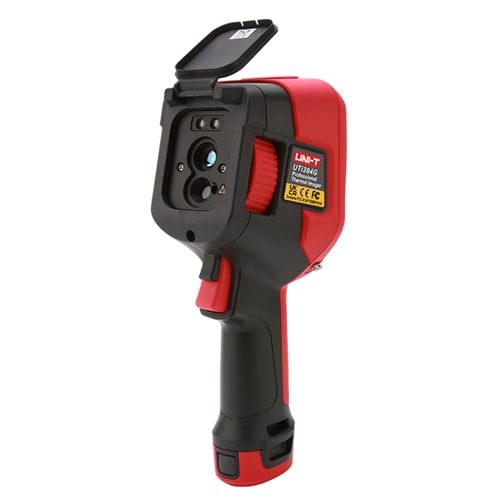

UTi384G is a professional enhanced thermal cameras that specially designed for industrial use. It supports high IR resolution 384×288 and wide temperature range from -20℃ to 550℃. The focus lens length can be flexibly adjusted according to different objective’s distance to provide high quality image. The 3.5’’ large IPS touch screen gives more efficient and convenient operation experience to users. UTi384G also supports various outstanding functions such as Wi-Fi, voice recording, laser pointer, on screen analyzer, Isotherm,etc. It is a perfect troubleshooting tool for many industrial applications.
The device reaches IP54 protection level and 2 meters drop resistance. It is stable and durable.
Specifications:
| Technical Data | |
| IR resolution (Pixels) | 384×288 |
| Display | 3.5‘’ Touch (640×480) |
| Field of view(FOV) | 42°×30° |
| Thermal sensitivity(NETD) | ≤40mK |
| Spatial resolution(IFOV) | 1.91mrad |
| Frame rate | ≤30Hz |
| Focus | Manual |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | 5 Points/5 Lines/5 Rectangles/5 Circles |
| Digital camera resolution | 5MP |
| Digital zoom | 2x, 4x |
| Hi/Lo temperature alarm | Icon |
| Isotherm | 5 (Auto/Manual/Above/Below/Section) |
| Software analysis | PC+APP |
| Video recording | √ |
| Voice recording | √ |
| Wi-Fi / Bluetooth | √/√ |
| Laser pointer | √ |
| General Characteristics | |
| Battery | Detachable Li-ion battery pack(3.7V 5200mAh) |
| Battery operation time | About 5 hours (with Wi-Fi off) |
| USB | Type-C |
| IP rating | IP54 |
| Drop proof | 2m |
| Storage | 8GB Interna, l32GB External |
| Image/Video storage format | pic: JPEG ; video: MP4/irgd |
| Certificates | CE,UKCA,FCC,RoHS |
| Languages | EN, FR, DE, IT, ES, SV, PL, CZ, RU, PT, AR, JA, KO |
| Product net weight | 880g |
| Product size | 261mm×104mm×97mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card |
| Standard individual packing | Toolbox,Gift box |
| Standard Qty per carton | 1 |
| Standard carton size | 400mm×185mm×345mm |
| Standard carton G.W. | 4.2kg |
Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgement.
3. Avoiding judgement errors, reducing labor cost, and discovering poor heat dissipation and hidden trouble points.
4. PC Software for data analysis and report output
Thermal Imaging Cameras can be used widely in many applications.
Application Performance of UTi384G
PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
Pipe Line Heating Inspection
Pipe Line Heating Inspection

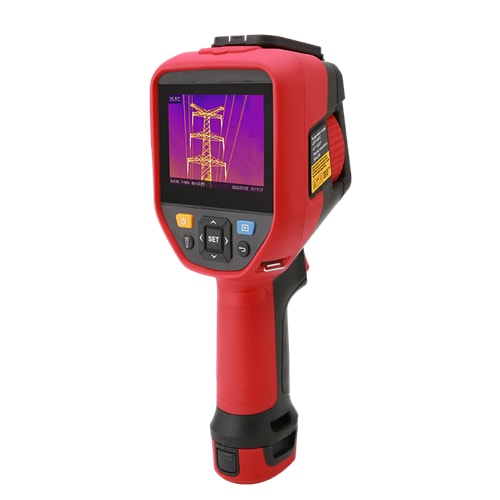

Electric power tower inspection
Power Distribution Inspection
