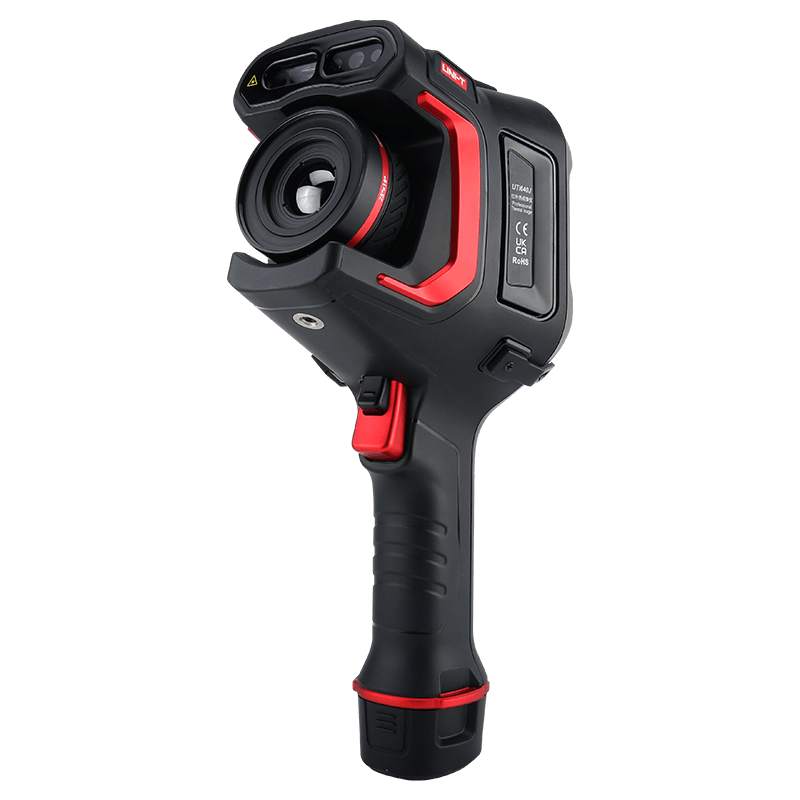

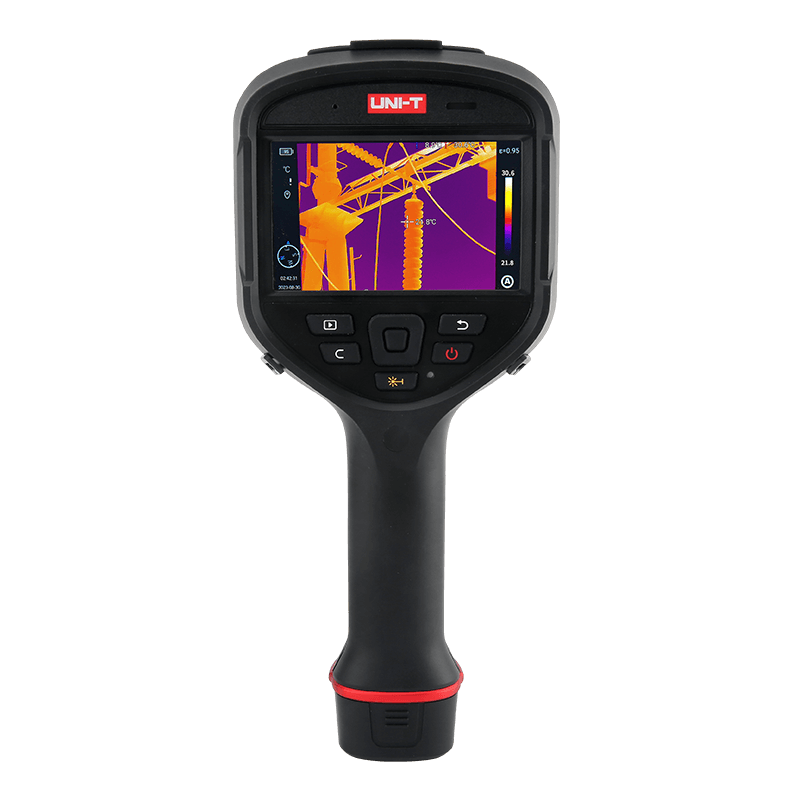

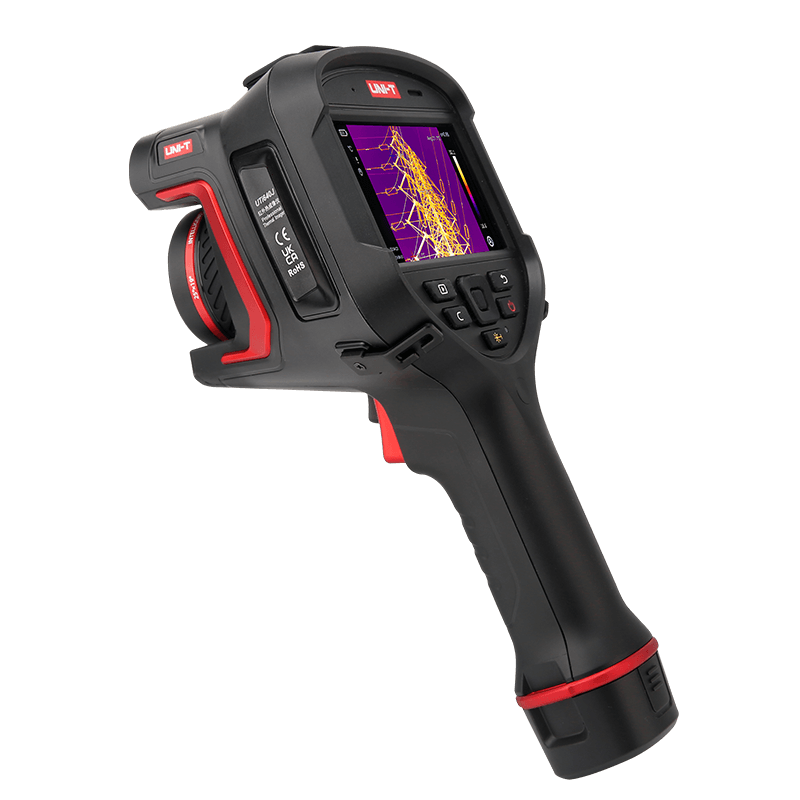

UTi640J
Handheld Thermal Camera
See Clearly, Diagnose Fast with UTi640J thermal camera! It’s a powerful tool designed for industrial applications.
✔High-resolution Thermal Imaging: 640 x 480 pixels for detailed temperature measurement.
✔ Sharp Visual Details: 13MP digital camera for enhanced image clarity.
✔ 30Hz Frame Rate: Monitor fast-moving targets with ease.
✔ Classic Hammer Design: Durable and comfortable for extended use.
Chat with iSecus on Whatsapp
Description:
UTi640J is a new handheld thermal camera released in 2024. It is a professional enhanced thermal imaging camera at high configuration. UTi640J features a 640×480 infrared resolution camera. By adopting the advanced T-Mix technology, it reaches 1280×960 super resolution, allowing you to see the details clearly. It supports built-in LED flashlight which can be used for infrared heat inspection in dark environments. The high-temperature alarm buzzer sounds an alarm when the temperature exceeds a pre-set threshold, helping you to identify potential safety hazards in a timely manner.
Features:
◆ 640×480 pixels IR resolution
◆ Super resolution (upgraded to 1280×960)
◆ 13MP digital camera
◆ Multiple focusing modes (Manual, Automatic, Touch autofocus, Continuous autofocus)
◆ Interchangeable camera lens (Macro lens, Wide-angle lens, Medium tele lens, Tele lens, High-temp lens)
◆ 20x magnification
◆ Rich color palettes (Customized palette is supported)
◆ Level & Span mode
◆ Image outline
◆ Panoramic stitching
◆ Dual-light video recording
◆ LRF
◆ Image, Text and Voice annotations
◆ Wi-Fi live streaming

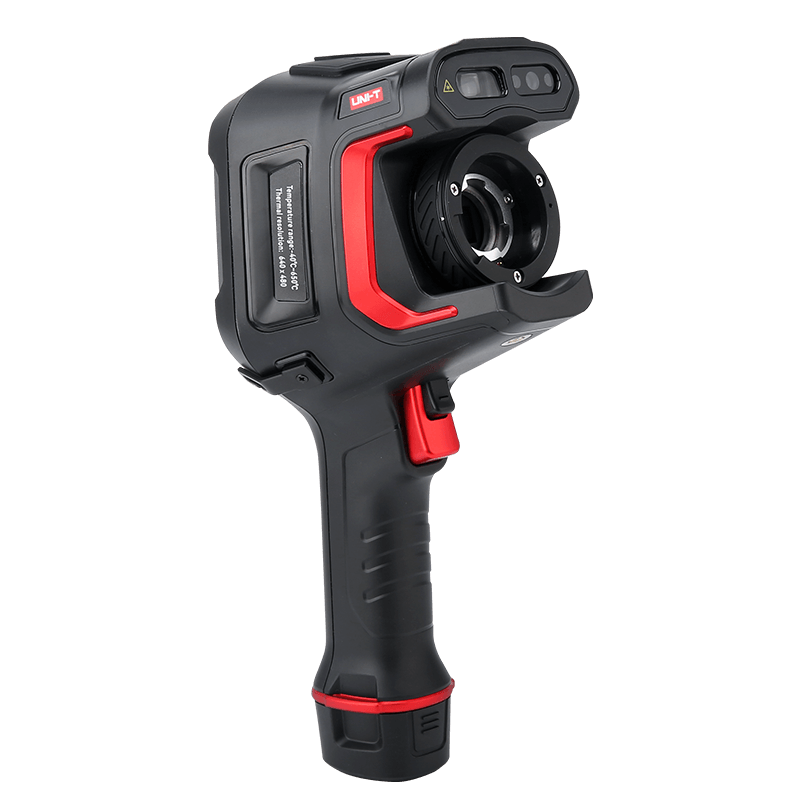

Introduction of UTi640J Lens:
6 Interchangeable Lenses are available for UTi640J & UTi384J thermal camera. Each lens is designed for a specific application, giving you the flexibility to tackle any inspection task with confidence.
Here’s a glimpse of what you can achieve:
* Macro Lens (24″ x 18″): Magnify fine details for close-up inspections.
* Wide-Angle Lens (44° x 34°): Ideal for capturing larger areas in a single frame.
* Medium Telephoto Lens (15° x 11°): Offers a balance between magnification and field of view.
* Telephoto Lens (7° x 5°): See distant objects with exceptional clarity.
* High-Temp Lens (500°C ~ 2000°C): Designed for measuring high temperatures in industrial environments.
* Standard Lens (25° x 19°): Perfect for general-purpose inspections.
Specifications:
| Technical Data | |||||||
| Display | 4.3” LCD Touch (800×480) | ||||||
| IR resolution(Pixels) | 640×480 | ||||||
| Super resolution | √(1280×960) | ||||||
| Spectral range | 7.5~14μm | ||||||
| Pixel size | 12μm | ||||||
| Frame rate | 30Hz | ||||||
| Thermal sensitivity(NETD) | ≤40mK | ||||||
| Focus | Manual / Automatic / Touch autofocus / Continuous autofocus | ||||||
| Lens recognition | Automatic | ||||||
| Infrared lens | Standard lens | Marco lens (Optional) | Wide-angle lens (Optional) | Medium tele lens (Optional) | Tele lens (Optional) | High-temp lens (optional) | |
| Lens focal length | 17.7mm | 16.2mm | 10.0mm | 29.0mm | 62.9mm | / | |
| Field of view(FOV) | 25°×19° | / | 44°×34° | 15°×11° | 7°×5° | 25°×19° | |
| Temperature measurement range | Support auto-switching: -40°C~150°C, 0°C ~650°C | ||||||
| 500°C ~2000°C (Optional Hi-temp. Lens) | |||||||
| Accuracy | ±2℃ or ±2% whichever is greater | ||||||
| Functions | |||||||
| Color palettes | White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized | ||||||
| Image modes | Thermal, Visual image, Fusion, PIP | ||||||
| On screen analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles | ||||||
| Isotherm | Automatic, Semi-automatic, Manual | ||||||
| Level & Span | √ | ||||||
| Image outline | √ | ||||||
| Panoramic stitching | √ | ||||||
| Hi/Lo temperature alarm | LCD animation, LED flashlight, Buzzer | ||||||
| Hi/Lo temperature tracking | √ | ||||||
| All-around voice assistant | √ | ||||||
| Annotation | Text, Voice, Image | ||||||
| Digital camera resolution | 13MP | ||||||
| Digital zoom | 1.1x~20x | ||||||
| Video recording | √ | ||||||
| Voice recording | √ | ||||||
| Wi-Fi / Wi-Fi live streaming | √ | ||||||
| Bluetooth | √ | ||||||
| GPS | √ | ||||||
| Laser pointer / LRF | √ | ||||||
| LED lighting | √ | ||||||
| Analysis software | PC+APP | ||||||
| General Characteristics | |||||||
| Battery | 3350mAh detachable Li-ion battery pack | ||||||
| Operating time | ≥4 hours (with Wi-Fi off) | ||||||
| USB | Type-C | ||||||
| Storage | 64GB Internal & 64GB Micro SD card | ||||||
| Image storage format | Jpg | ||||||
| Video storage format | MP4 & Irgd | ||||||
| Protection | IP54 & 2m | ||||||
| Languages | ZH_hans, ZH_hant, EN, FR, DE, ES, IT, RU, PL, KR, PT, TR, TH, NO, CZ, HU, JP, AR | ||||||
| Weight | ≤1.15KG (included standard lens & battery) | ||||||
| Dimension | 292mm×125mm×125mm | ||||||
Typical Applications of UTi640J Thermal Camera

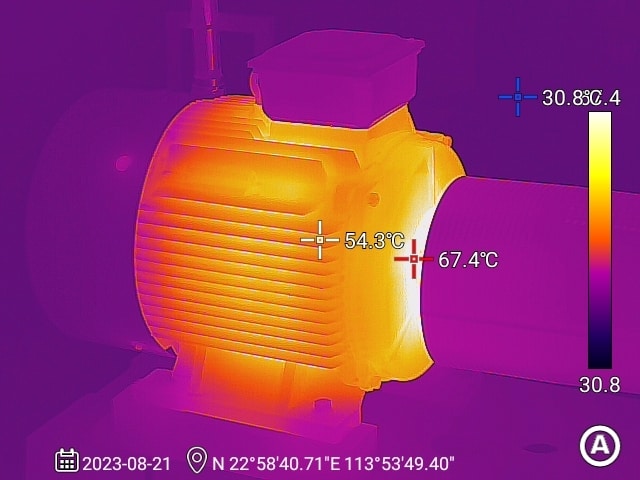

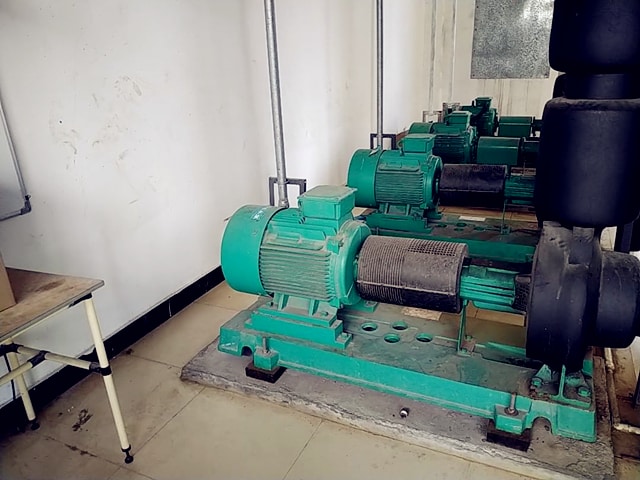

Motor Inspection

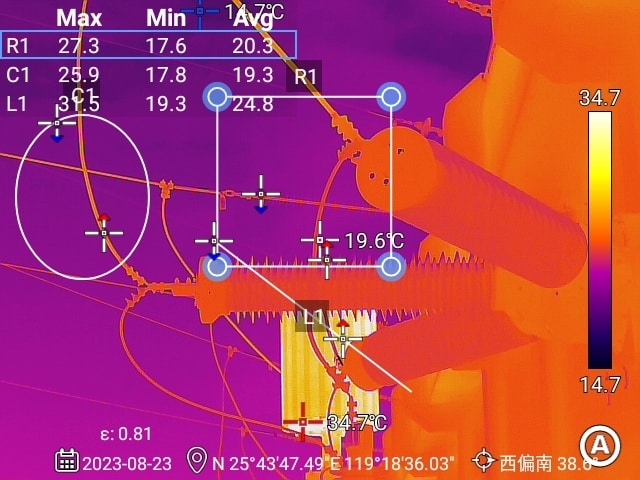

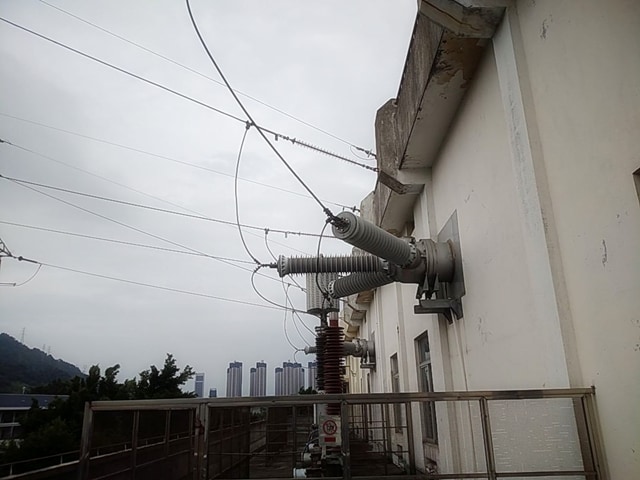

Power Cable Inspection

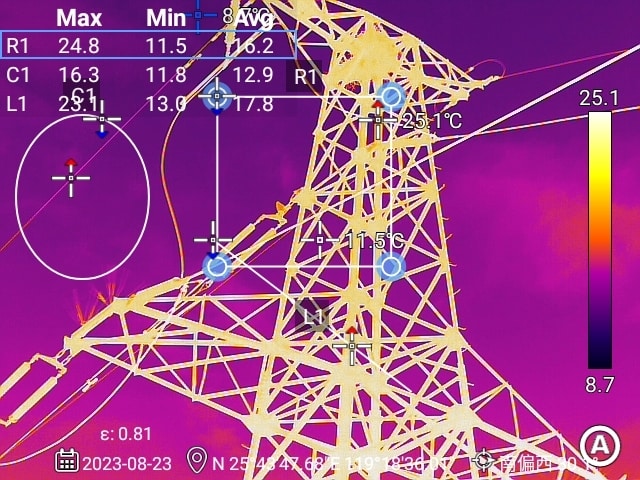

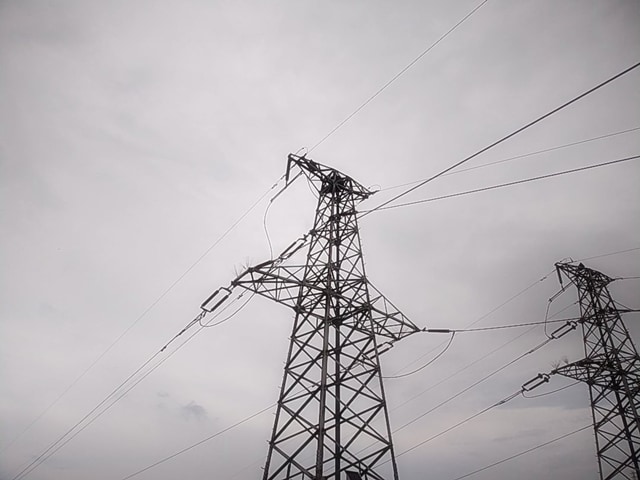

Power Tower Inspection
Download
UTi640J & UTi384J Thermal Camera Datasheet
