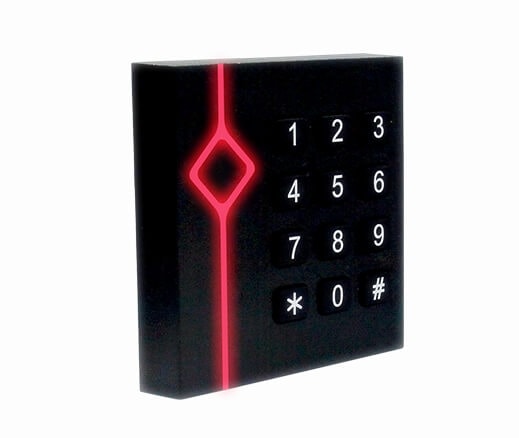

Model: KR216 Series

Waterproof Card & Password Reader for Access Control System

General Configuration:

13.56MHz or 125Khz Frequency Card/Keyfob/Wristband Reading
Touch Keyboard for password input
IP67 Waterproof Case for outdoor use
Card Reading Distance 3.5-5cm (Non touch)
Wiegand 26, Wiegand 34 output
Transmission Distance 100M
Embeded Beeper
Red and Green LED Indicator

Description:

KR216 series wiegand readers can read 125Khz and 13.56MHz cards at fast speed. The reader is equippied with touch key board for password input. KR210M is developped based on ISO/IEC14443A/B/ and ISO15693 international protocols. It is compatible with RFID chips like S50, S70, Desfire, Ntag213/216, Ultralight. The case meets IP67 waterproof protection level, suitable to be installed both indoor and outdoor.

Specifications:

CaseABS material with Mechanical Keyboard
FrequencyKR212E: 125KHZ
KR212M: 13.56MHZ
KR216EM: 125KHZ & 13.56MHZ
Supported CardsKR212E: ID Card
KR212M: Mifare card like S50, S70, Desfire, Ntag213/216, Ultralight
KR216EM=KR216E+KR216M
Reading Distance3-5CM
Responding Speed<200ms
Wiegand OutputWiegand 26/Wiegand 34
Transmission Distance100M
Operating Temperature-20 ℃ to 65 ℃
Operating Humidity20% to 80%
Power SupplyDC 12V
Working Current≤ 200mA
Protection GradeIP67 (Solid epoxy potted)
Dimension86mm * 86mm * 16mm
Net Weight140g
LED IndicatorRed (Standby Mode), Green (Reading mode)
Cable OutputsRed(VCC), Black(GND), Green(D0), White(D1), Purple(Beep), Grey(CLED), Yellow(+GND-->WG26)
ApplicationAccess Control, Time Attendance, POS, Patrol System, Anti-theft System, etc
