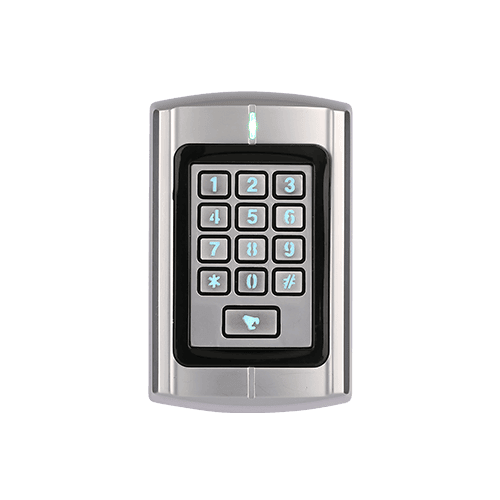

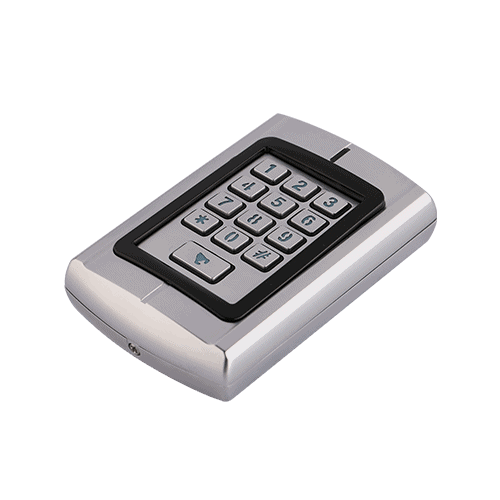

Model: RT380
Waterproof RFID Access Control/Metal Case Door Controller
General Specifications:
√ Card Reader: 125KHz EM or 13.56MHZ MF
√ User Capacity: 5000
√ Multiple Verification: Card, Password, or combined
√ Waterproof Level: IP65
√ Access Control Interface: Electric lock, Door sensor, Alarm, Exit button and Doorbell
Scan to chat with iSecus in Whatsapp
Description:
RT380 is a standalone access control with waterproof performance. It can read 125KHZ ID card or 13.56MHZ MF card at fast speed. The device comes with compact design and backlight keyboard, easy and convenient to operate. This device supports professional access control function, including standalone password, wiegend output, door sensor alarm, dismattle alarm, door bell, etc. It is suitable for house, office and apartment.
Features:
◆ Big capacity: standard 5000
◆Flush-Mounted Design for neat installation.
◆Wiegand output by default and wiegand input by optional
◆Easy operation, with backlight keypboard
◆Metal casing with IP65 waterproof level
◆Professional access control function
Specifications:
| Model | RT380E or RT380M |
| Frequency | 125KHZ or 13.56MHZ |
| Supported Card | ID Card or MF Card |
| User Capacity | 5000 pcs |
| Working Voltage | DC 12V |
| Working Current | 100 ma |
| Reading Distance | 0--6CM |
| Working Temp. | -10degree ---60 degree |
| Humidity | 15%--90% |
| Lock Output | <=3A |
| Communication: | Wiegand output, Wiegand input(optional) |
| Alarm Output | <=20A |
| Measurement | 120MM * 75MM*23MM |
