Model: G300/G300Plus
WiFi and 3G/4G GSM Smart Alarm System, compatible with Tuya Smart, Google Echo and Amazon Alexa

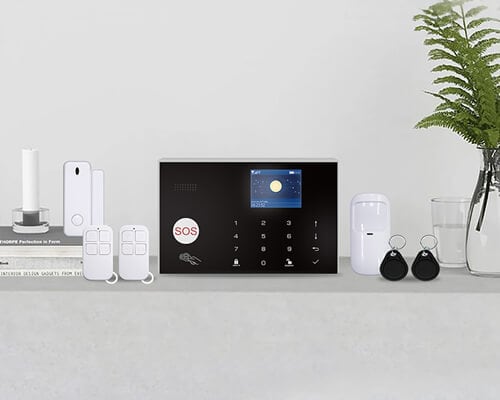

G300 is an advanced WiFi Alarm System Kit which can meet the general requirement of most customers for home and office security. Quality and performance is very stable. It is an ideal kit for distribution and retail. OEM order is welcomed.
General Configuration:
√ WiFi and GSM dual network
√ App remote control, SMS Control, Voice Control(Alexa, Google)
√ 99 wireless accessories and 3 wired alarm zone could be connected
√ Alarm PUSH notification and low voltage alert
√ Multiple Languages Display
Customer can DIY this alarm system easily. It is convenient to add max. 99 channels of alarm sensors.
Description:
Features:
◆ Compatible with Tuya, Amazon Alexa, Google Assistant, IFTTT

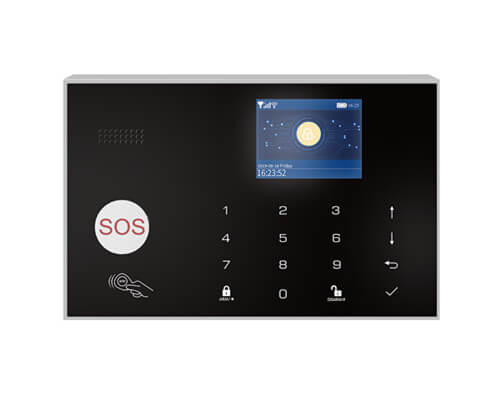

◆Alarm hub adopts 2.4TFT Screen, with embedded SOS
◆Support 4G GSM network(850/900/1800/1900MHz) and WiFi(IEEE802.11b/g/n)
◆ Support Multiple Alarm notifications(APP Push /SMS /Voice)
◆Support phone/SMS/APP remote settings
◆ Up to 99 wireless zones and 3 wired zones
◆ 10 RFID tags and 10 remote tags can be learned
◆Support 5 groups preset alarm phone number
◆Arm schedule and disarm schedule
◆ Pre-record 20s of Alarm Voice Message
◆Multiple languages are available, up to 11 languages
◆System will be blocked for 90s after 5times continous wrong passwords
◆Support external wireless sirens
◆App: tuya (iOS and Android)
Specification:
| KIT Info | |
| Radio Frequency | 433Mhz |
| Transmitting Distance | <80m (Open Area and No Interference) |
| Hub (1pc) | |
| Power Supply | Micro USB 110/220VAC to 5V, 1000mA |
| Battery | 3.7V, 500mAh |
| Consumption | <55mA@normal |
| Siren Output | <500mA |
| Network | WiFi (IEEE802.11b/g/n), GSM, 4G(Optional) |
| Remote Controller (2pcs) | |
| Power Supply | DC 3V (CR2025 Lithium Battery x1) |
| Standby Current | <5uA |
| Alarm Current | <15mA |
| Transmitting Distance | <80m (Open Area and No Interference) |
| Door/Window Sensor (1pc) | |
| Power Supply | DC 3V (CR2032 Lithium Battery x1) |
| Standby Current | <8uA |
| Alarm Current | <15mA |
| PIR Motion Sensor (1pc) | |
| Power Supply | 1.5V AA Battery x3 |
| Standby Current | <15uA |
| Alarm Current | <25mA |
| Detection Scope | <12m/110° |
| RFID Tag (2pcs) | |
| Chip | 4100/4200 |
| Frequency | 125KHz ID |
| Read Distance | <2cm |
| Wired Siren (1pc) | |
| Volume | 100dB |
